Office App - Control and Sensor Widgets
The controls displayed in our Office App are dynamically generated based on the configured sensors and actuators. When a user sets up the listed Sensor Typ and Actuator Typ, the app automatically assigns and displays the corresponding control widgets. This ensures that the interface adapts to the available hardware configuration in our digitalized buildings. The table below outlines the possible control widgets, their associated sensors and actuators, and additional details regarding their behavior and permissions.
| Image | Resulting Control Widget | Sensor Typ | Actuator Typ | MIN Value | MAX Value | Unit | Notes | Visible with Permission | Archetype | |
|---|---|---|---|---|---|---|---|---|---|---|
|

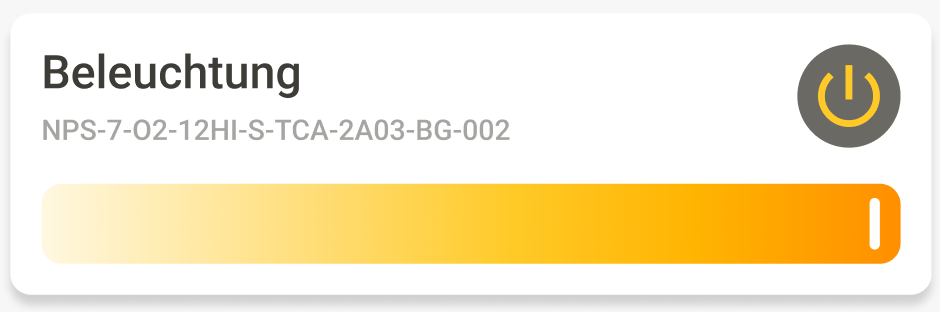

Light Slider with switch |
BRIGHTNESS |
TURN_ON, TURN_OFF, SET_DIMMING |
0 (Required) |
100 (Required) |
READ, WRITE |
LIGHT |
|||
|

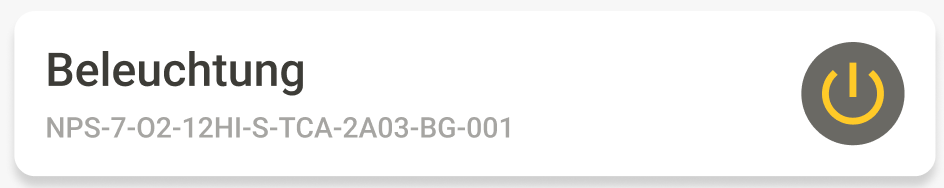

Light Switch |
BRIGHTNESS |
TURN_ON, TURN_OFF |
0 (Required) |
100 (Required) |
Toggle 0 or 100 |
READ, WRITE |
LIGHT |
||
Light Button On/OFF |
/ |
TURN_ON, TURN_OFF |
Coming Soon |
|||||||
|

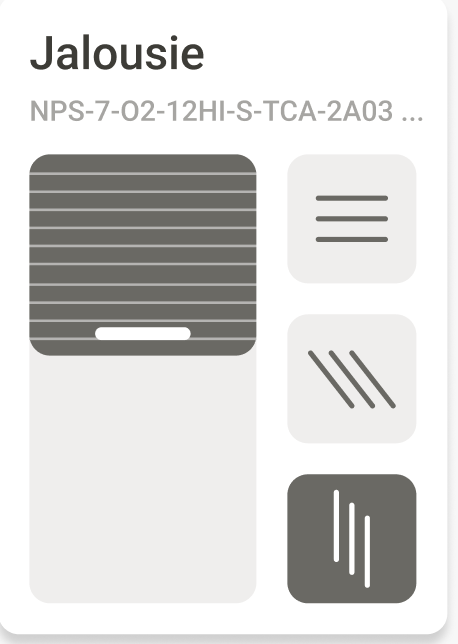

Blind Slider with angle buttons |
SLAT_POSITION, SLAT_ANGLE |
SET_SLAT_POSITION, SET_SLAT_ANGLE |
0 (Required) |
100 (Required) |
SLAT_ANGLE < 25: OPEN, SLAT_ANGLE < 75: PARTIAL, SLAT_ANGLE < 100: CLOSED |
READ, WRITE |
BLIND |
||
Blind Slider |
SLAT_POSITION |
SET_SLAT_POSITION |
0 (Required) |
100 (Required) |
Coming Soon |
BLIND |
||||
|

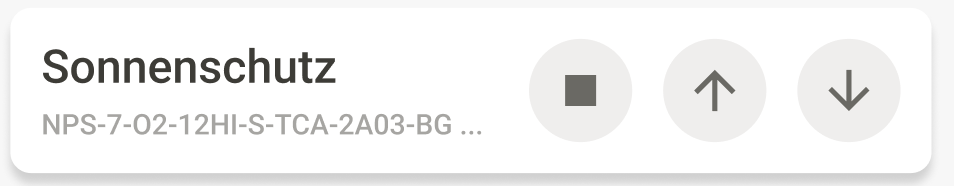

Blind Up/Down/Stop Buttons |
/ |
SET_DRIVE, SET_DRIVE_STOP |
SET_DRIVE: 0, SET_DRIVE_STOP: 0 |
SET_DRIVE: 1, SET_DRIVE_STOP: 0 |
READ, WRITE |
BLIND |
|||
|

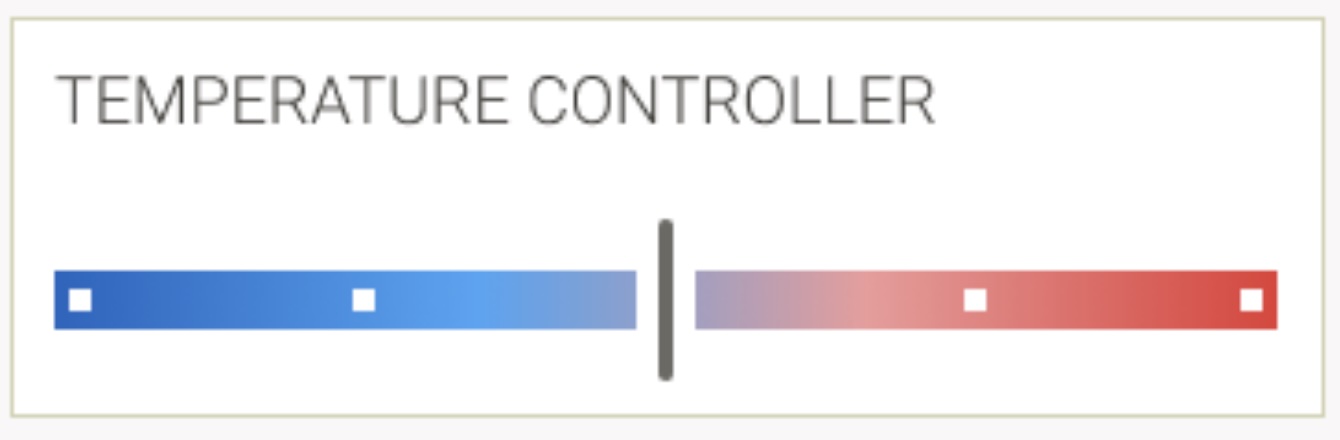

Absolute Temperature Controller |
SETPOINT_TEMPERATURE, MAX_TEMPERATURE, MIN_TEMPERATURE |
SET_SETPOINT_TEMPERATURE |
MIN temperature of control by MIN_TEMPERATURE Sensor, Fallback App: 18 |
MAX temperature of control by MAX_TEMPERATURE Sensor, Fallback App: 22 |
READ, WRITE |
CLIMATE |
|||
|

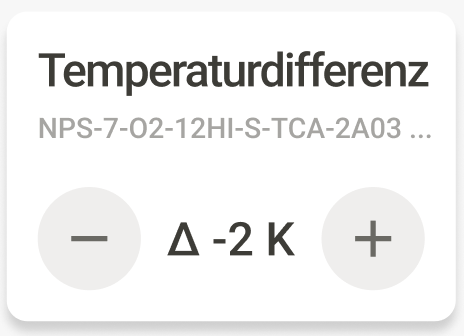

Delta Temperature Controller |
SETPOINT_TEMPERATURE_ADJUSTMENT, MAX_TEMPERATURE, MIN_TEMPERATURE |
SET_SETPOINT_TEMPERATURE_ADJUSTMENT |
MIN temperature of control by MIN_TEMPERATURE Sensor |
MAX temperature of control by MAX_TEMPERATURE Sensor |
Kelvin |
READ, WRITE |
CLIMATE |
||
|
Delta Temperature Controller |
SETPOINT_TEMPERATURE_ADJUSTMENT, MAX_TEMPERATURE, MIN_TEMPERATURE |
SET_SETPOINT_TEMPERATURE_ADJUSTMENT |
MIN temperature of control by MIN_TEMPERATURE Sensor |
MAX temperature of control by MAX_TEMPERATURE Sensor |
Celsius |
READ, WRITE |
CLIMATE |
||
|
Delta Temperature Controller |
SETPOINT_TEMPERATURE_ADJUSTMENT, MAX_TEMPERATURE, MIN_TEMPERATURE |
SET_SETPOINT_TEMPERATURE_ADJUSTMENT |
MIN temperature of control by MIN_TEMPERATURE Sensor |
MAX temperature of control by MAX_TEMPERATURE Sensor |
Null |
READ, WRITE |
CLIMATE |
||
|

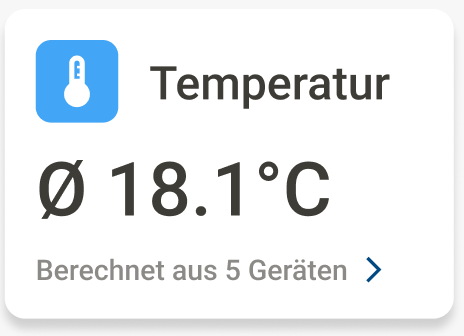

Temperature Feedback |
TEMPERATURE |
/ |
Multiple sensors are displayed combined. |
READ |
CLIMATE |
||||
|

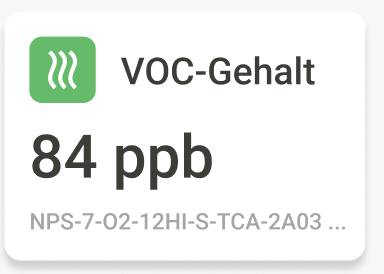

VOC Feedback |
VOC |
/ |
Multiple sensors are displayed combined. |
READ |
LIGHT |
||||
|

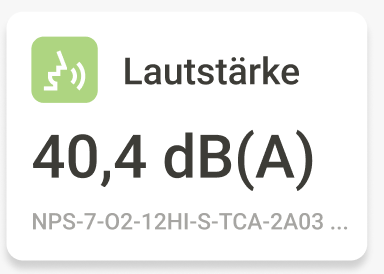

Loudness Feedback |
LOUDNESS |
/ |
Multiple sensors are displayed combined. |
READ |
LIGHT |
||||
|

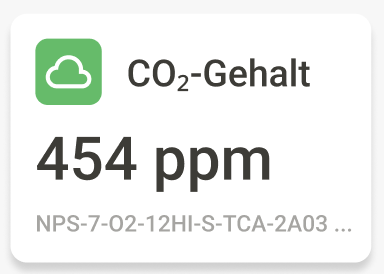

CO2 Feedback |
CO2 |
/ |
Multiple sensors are displayed combined. |
READ |
CO2 |
